Pier 2 - Medium FOV

656 Imaging AD300 12" Corrected Dall-Kirkham

Syndicates

You are part of a "club" and get to talk to and choose images with other like minded members
Get access to 100+ Data sets per year*
The ability to place image requests
Benefit from equipment and a location far out of reach for most
Be an active participant in Roboscopes and make suggestions to make us better
Still not sure? Contact for a free dataset so you can try before you buy :)

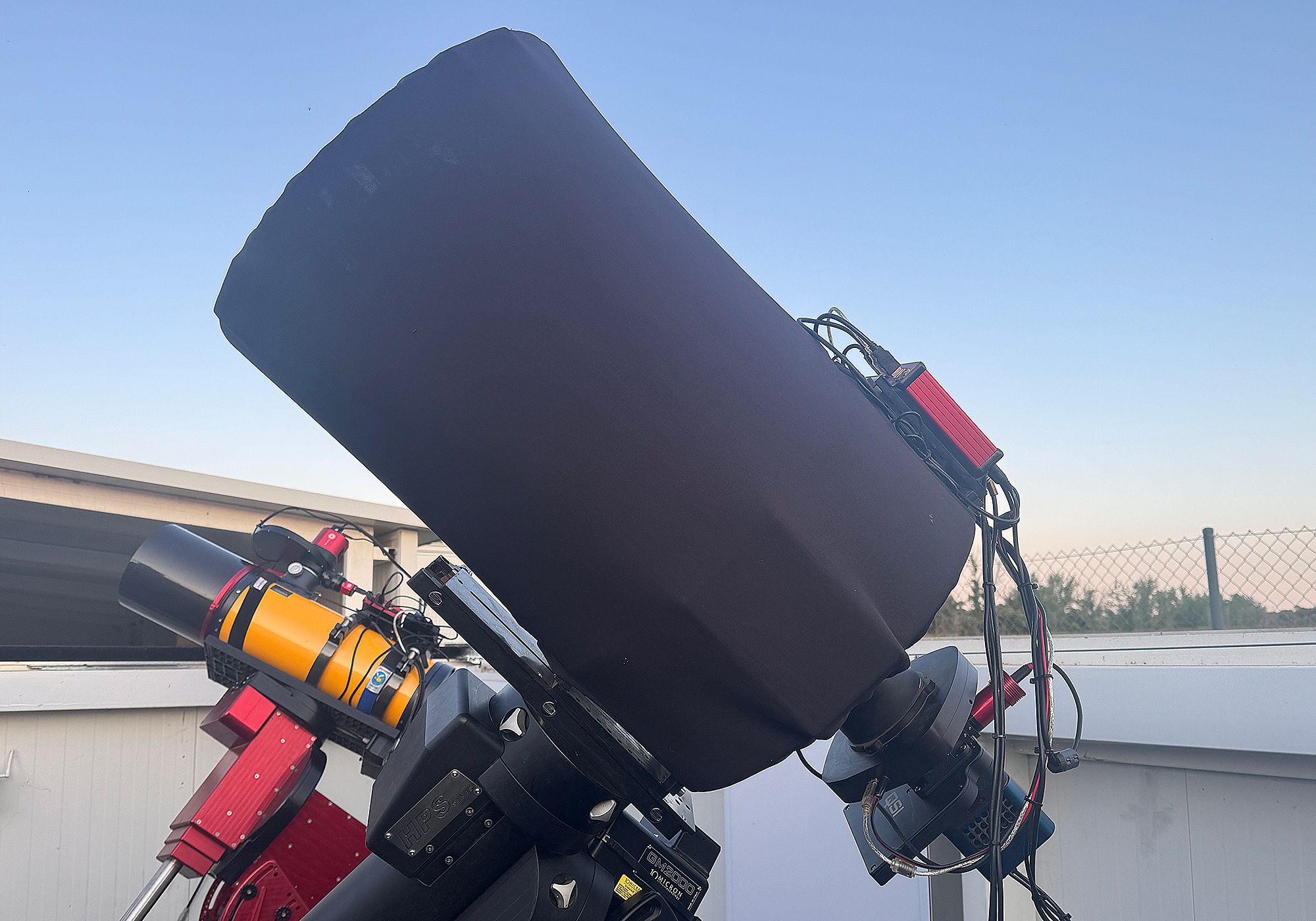

Telescope

This is a "656 telescopes" by peter Shah corrected Dall Kirkham with a nice flat field and a moderate speed for the aperture at F6.8, at 2017mm its a great focal length but in this case we have combined it with a KAF-16803 which allows high resolution imaging combined with a substantial FOV. This brings a whole host of larger subjects into play at a much larger aperture without breaking your imaging budget.

Camera

The ZWO ASI-6200MM Pro Mono CMOS is one of Sony's new generation zero ampglow sensors. They are super sensitive with very low noise. Making them a paradym shift from the CCD cameras we are all used to using and require much shorter exposures

This camera is set to Gain 100 as our default.

We have left the camera at 1x1 binning when imaging so users can software bin in post processing to suit the seeing etc, we do not guarantee that you can leave this setup at 1x1bin to process your image as 2x2 & 3x3 binning gives more appropriate sampling with this focal length

Please note: The maximum sub length we will do on this pier is 300s

Equipment List

Telescope	AD300 12" F/6.8 Dall Kirkham
Mount	10 Micron GM2000
Camera	ZWO 6200MM Pro CMOS Camera
Filter Wheel	ZWO 7 Position
Filters	Baader 50mm LRGB Ha-7nm o3-8nm s2-8nm
Guide Camera	ZWO 174 Mini
Guider	ZWO OAG Integrated
Focuser	FLI Atlas Electronic
Power & Dew Control	Mount Hub Pro V4

IMX-455

Back illumiated CMOS Sensor
36x24mm
9576x6388pixels
3.76µm

Bayer Matrix Parameters

N/A

0.55° x 0.37°
0.47"/px - Post Process Software Binning
2017mm Focal Length
F/6.8
30º Imaging Horizon Limits
Camera Position Angle: 89°

Recommended sub lengths

Broadband Imaging

Filter	Bright	Dim
Clear	n/a	n/a
Lum	180-600s	600-1200s
Red	180-600s	600-1200s
Green	180-600s	600-1200s
Blue	180-600s	600-1200s

Narrowband Imaging

Filter	Bright	Dim
Ha 7nm	300-900s	900-1200s
Hb	n/a	n/a
O3 8.5nm	300-900s	900-1200s
S2 8nm	300-900s	900-1200s
N2	n/a	n/a

Imaging subjects with brighter cores will of course require shorter sub lengths for HDR, your personal experience will be needed to gauge this yourself.
Please remember this is only a guide above, we are just trying to help you have the best experience possible remote imaging with Roboscopes.
Roboscopes supply the site and control the equipment but you choose everything else from filters, object/co-ordinates to sub lengths. So you need to exercise due diligence and experience when booking because if you fill the booking form out with incorrect details then you will get precisely that.
It is not Roboscopes responsibility to check your detailed requirements after you have booked.

Filter weights

Get accurate star colours with our filter weights

	Filter	Weight
	Red	TBA
	Green	TBA
	Blue	TBA

Calibration Files

This pier has a FREE calibration library, this includes a dark library that correlates to the most common subs lengths used, see below

30s Darks
45s Darks
60s Darks
120s Darks
180s Darks
240s Darks
300s Darks
600s Darks
900s Darks
1200s Darks
Bias Frames
Flat Frames - L, R, G, B, Ha, o3, S2

If you choose more individual sub lengths eg 550s, then darks are not included in the price and are taken for you on an individual basis. Please add darks to your imaging run in checkout.

Field of view examples

M16 The Eagle Nebula

M31 Andromedea Galaxy

M42 The Orion Nebula
