Pier 10 - Medium FOV

14" F3.3 Corrected Newtonian

  • Home
  • Information
  • Equipment
  • Pier 10 - Hourly

Telescope

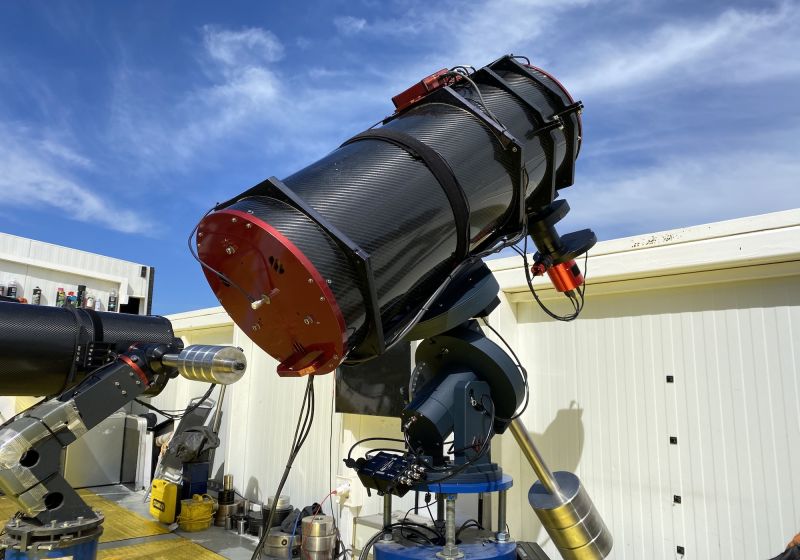

A very special one off 14" F3.3 Imaging Newtonian with Zerodur mirror figured by well known mirror maker Danny Cardoen, it has a fabulous mirror and will produce stunning detail & FOV with the big ZWO 35mm super sensite CMOS camera!

Peter from 656 Imaging has given it the full treatment including a strip-down, clean and full collimation service. So it really is just ready to rock n Roll!

CMOS Camera

The ZWO ASI-6200MM Pro Mono 35mm full frame CMOS is one of Sony's new generation zero ampglow sensors. They are super sensitive with very low noise. Making them a paradym shift from the CCD cameras we are all used to using and require much shorter exposures

This camera is set to Gain 100 as our default.

We have left the camera at 1x1 binning when imaging so users can software bin in post processing to suit the seeing etc, we do not guarantee that you can leave this setup at 1x1bin to process your image as 2x2 binning gives more appropriate sampling with this focal length

Please note: The maximum sub length we will do on this pier is 300s

Telescope

14" F/3.3 Wynne Corrected Newtonian

Camera

ZWO 6200MM Pro

Mount

JTW Trident 23b Absolute Encoders

  • Telescope

    14" F/3.3 Wynne Corrected Newtonian

  • Camera

    ZWO 6200MM Pro

  • Mount

    JTW Trident 23b Absolute Encoders

Equipment List

Telescope
14" F/3.3 Wynne Corrected Newtonian
Mount
JTW Trident with 23b Absolute Encoders
Camera
ZWO 6200 MM Pro Mono CMOS 2x2 Binned
Filter Wheel
ZWO 2" 7 Position
Filters
Astrodon LRGB Ha-5nm o3-5nm s2-5nm
Guide Camera
ZWO 290 mini - 2x2 Binned
Guider
OAG
Focuser
FLI Atlas
Power & dew Control
HitecAstro MHP V4

IMX-455

Back illumiated CMOS Sensor
36x24mm
9576x6388pixels
3.76µm
Bayer Matrix Parameters

N/A

  • 1.76° x 1.18°

  • 0.66"/px - Post Process Software Binning

  • 1171mm Focal Length

  • F/3.3

  • 30º Imaging Horizon Limits

  • Camera Position Angle: TBA

  • Recommended sub lengths

Broadband Imaging

FilterBrightDim
Clear
N/A

N/A

Lum
5-60s

60-180s

Red
5-60s

60-180s

Green
5-60s

60-180s

Blue
5-60s

60-180s

Narrowband Imaging

FilterBrightDim
Ha 5nm
120-180s

240-300s

HB
n/a

n/a

O3 5nm
120-180s

240-300s

S2 5nm
120-180s

240-300s

N2
n/a

n/a

  • Imaging subjects with brighter cores will of course require shorter sub lengths for HDR, your personal experience will be needed to gauge this yourself.

  • Please remember this is only a guide above, we are just trying to help you have the best experience possible remote imaging with Roboscopes.

  • Roboscopes supply the site and control the equipment but you choose everything else from filters, object/co-ordinates to sub lengths. So you need to exercise due diligence and experience when booking because if you fill the booking form out with incorrect details then you will get precisely that.

  • It is not Roboscopes responsibility to check your detailed requirements after you have booked.

  • Filter weights

Get accurate star colours with our filter weights

FilterWeight
Lum

TBA

Red

TBA

Green

TBA

Blue

TBA

Calibration Files

This pier has a FREE calibration library, this includes a dark library that correlates to the most common subs lengths used, see below

  • 30s Darks
  • 45s Darks
  • 60s Darks
  • 120s Darks
  • 180s Darks
  • 240s Darks

  • 300s Darks

  • Bias Frames

  • Flat Frames - L, R, G, B, Ha, o3, S2

This pier has a FREE calibration library, this includes a dark library that correlates to the most common subs lengths used, see below
