Telescope

Sharpstar's 100Q II APO ED 100/580 f/5,8 quadruplet is a nippy 100mm telescope with superb correction & when coupled with an APSc sensor gives the perfect FOV for many deep sky objects, making it a match made in heaven.

Recommended Sub Lengths

FilterBrightDim
Lum
10-60s

60-180s

Broadband RGB
30-120s

120-300s

Narowband HOS
60-120s

120-300s

Calibration Files

  • 10, 30, 60, 90, 120, 180, 240 & 300s Darks

  • Bias Frames

Latest Images Inside The Observatory

Camera

Player One camera may look similar to all the other Chinese cameras on the market but after a few years of testing we assure you they are far from it, lower noise, less banding and a global shutter not to mention significantly higher build quality and attention to detail.

All this stands the Poseidon head and shoulder above its contemporaries in our humble opinion.

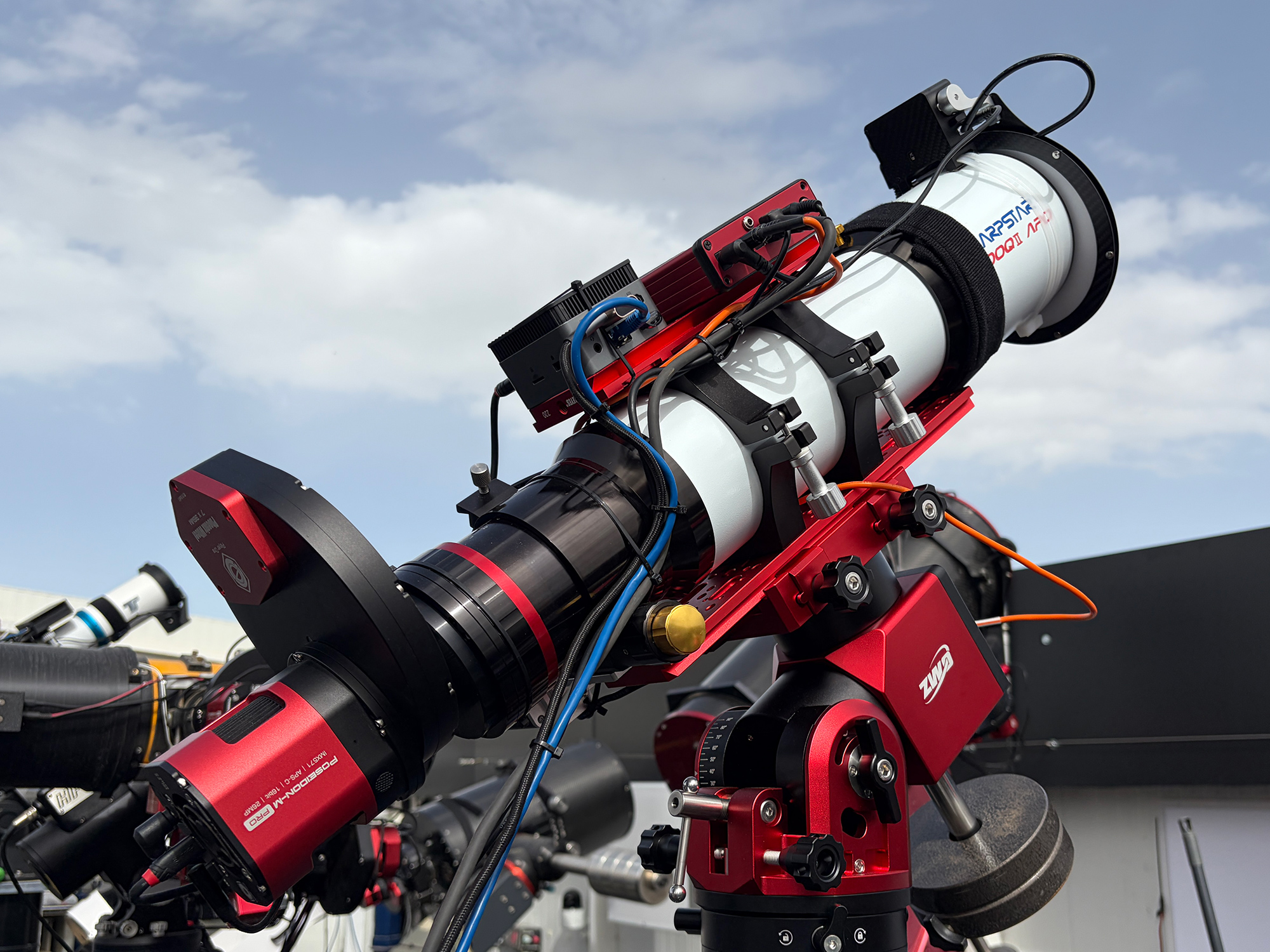

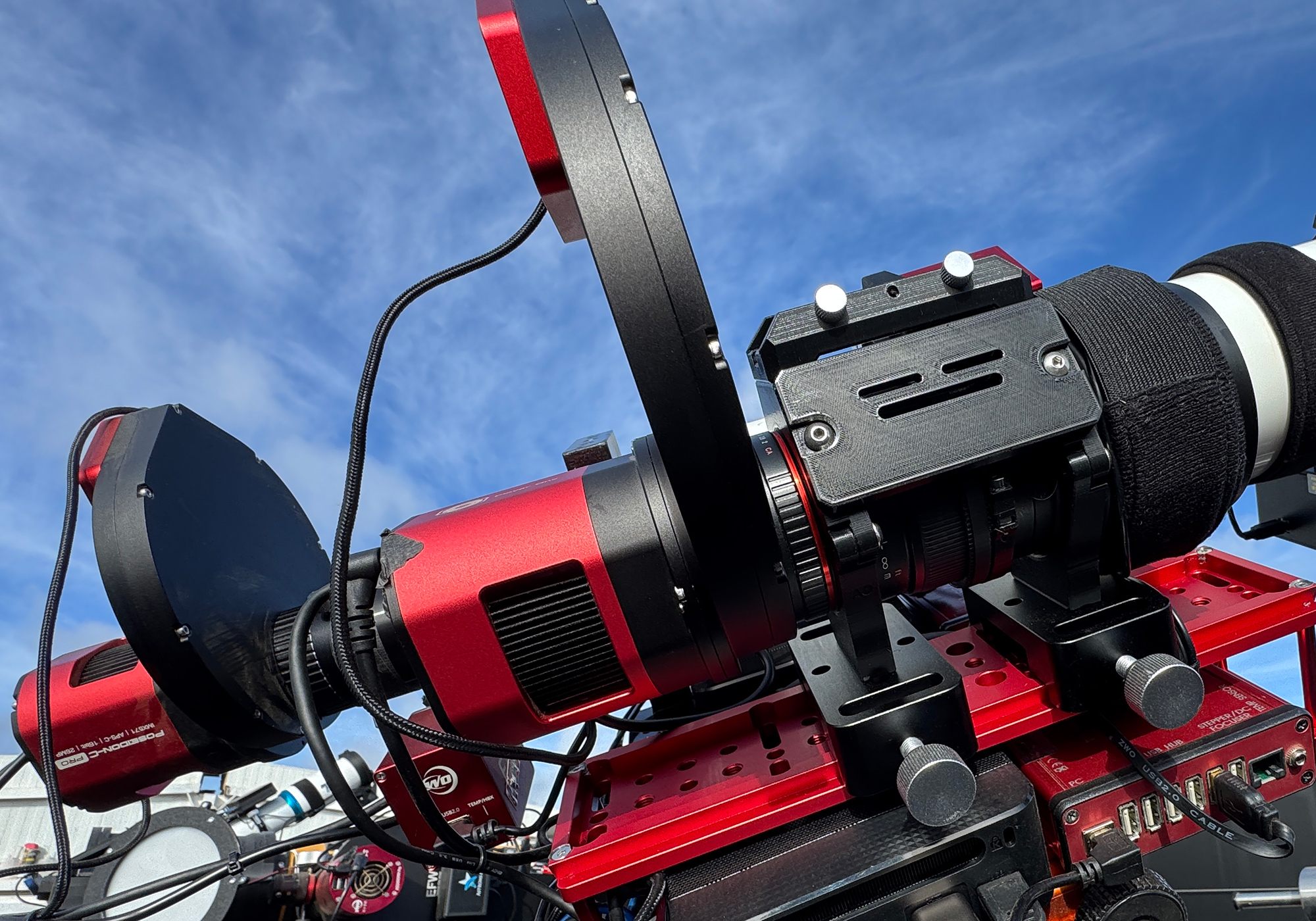

Pier-16 Equipment List

Telescope
Sharpstar 100Q II F/5.8 APO
Mount
ZWO Am7
Camera
Player One Poseidon CMOS Mono Camera
Filter Wheel
Player One 7 Position 36mm
Filters
Astronomik LRGBHOS 6nm
Guide Camera
ZWO 120
Guider
Mini Guide Scope
Focuser
Gemini
Power Control
HitecAstro MHP V4
Flat Panel
Gemini

Pier Specs

  • 2.32° x 1.55°

  • 1.34"/px

  • 580mm

  • F/5.8

Sensor Specs

Sony IMX571

Back illuminated CMOS Sensor
23.5x15.7mm
6248x4176pixels
3.76µm
