Pier 12

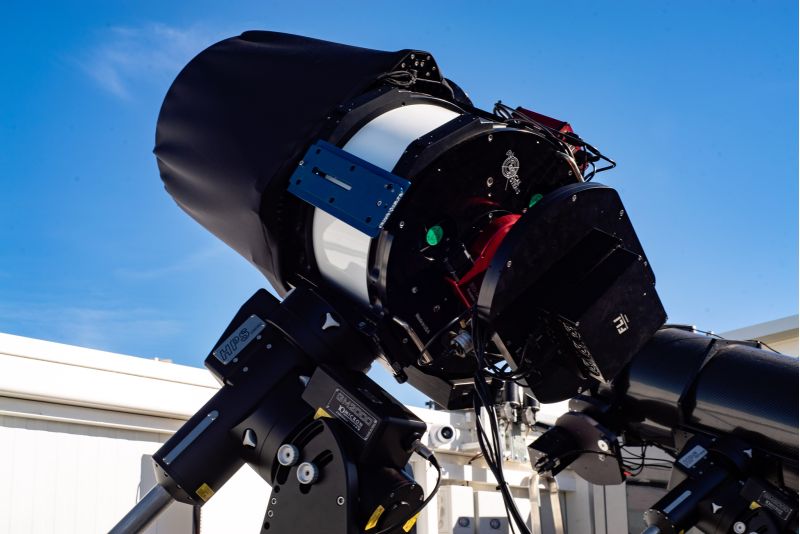

RC Optical Systems (RCOS) 12.5" Ritchey Chrétien

Telescope

RCOS are synonymous with quality and after installing this one I can see why, no corners have been cut at all in the build of this Ritchey Chrétien 12.5” telescope. It’s built like a tank has all the nice touches from front focusing, auto fans to dew control and proper honeycomb flocking, on top of this it has 1/20th PV Zerodour mirrors.

Pier-12 is not fast and has a typical RC speed at F/9, however when combined with our skies 1200 seconds is generaly as long a sub you will ever have to do even for narrowband. so unless the object is super super dim there is no need for 1800s subs in all but the dimmest objects

Camera

FLI ML-16803 Mono CCD coupled to a FLI 2-7 wheel and Croma 50mm unmounted LRGB & narrowband HA OII SII 5nm

Its fitted witha a very clean sensor that calibrated exceptionaly well

Telescope

RCOS 12.5" Ritchey Chrétien

Camera

FLI PL-16803

Mount

10 Micron GM2000

Equipment List

Telescope
RCOS-12.5 12.5" F/9 Ritchey Chrétien
Mount
10 Micron GM2000
Camera
FLI ML-16803 Mono CCD
Filter Wheel
FLI 7 Position
Filters
Astrodon 50mm LRGB Ha-5nm o3-3nm s2-5nm Baader HB 8.5nm
Guide Camera
ZWO 174 Mini
Guider
OAG Integrated
Focuser
RCOS Electronic Front Focusing
Power & Dew Control
Mount Hub Pro V4
Flattener
RCOS Dedicated Field Flattener

KAI-16803

Front illumiated Sensor
36.8 x 36.8mm
4096x4096pixels
9µm
Bayer Matrix Parameters
place holder place holder

  • 0.74° x 0.74°

  • 0.65"/px

  • 2853mm Focal Length

  • F/9

  • 30º Imaging Horizon Limits

  • Camera Position Angle: TBA

  • Recommended sub lengths

Broadband Imaging

FilterBrightDim
Clear
n/a

n/a

Lum
60-300s

600-900s

Red
60-300s

600-900s

Green
60-300s

600-900s

Blue
60-300s

600-900s

Narrowband Imaging

FilterBrightDim
Ha 5nm
300-900s

900-1200s

Hb
300-900s

900-1200s

O3 5nm
300-900s

900-1200s

S2 5nm
300-900s

900-1200s

N2 3nm
n/a

n/a

  • Imaging subjects with brighter cores will of course require shorter sub lengths for HDR, your personal experience will be needed to gauge this yourself.

  • Please remember this is only a guide above, we are just trying to help you have the best experience possible remote imaging with Roboscopes.

  • Roboscopes supply the site and control the equipment but you choose everything else from filters, object/co-ordinates to sub lengths. So you need to exercise due diligence and experience when booking because if you fill the booking form out with incorrect details then you will get precisely that.

  • It is not Roboscopes responsibility to check your detailed requirements after you have booked.

  • Filter weights

Get accurate star colours with our filter weights

FilterWeight
Red

TBA

Green

TBA

Blue

TBA

Calibration Files

This pier has a FREE calibration library, this includes a dark library that correlates to the most common subs lengths used, see below

  • 30s Darks
  • 45s Darks
  • 60s Darks
  • 120s Darks
  • 180s Darks
  • 240s Darks

  • 300s Darks

  • 600s Darks

  • 900s Darks

  • 1200s Darks

  • Bias Frames

  • Flat Frames - L, R, G, B, Ha, o3, S2

If you choose more individual sub lengths eg 550s, then darks are not included in the price and are taken for you on an individual basis. Please add darks to your imaging run in checkout.
