Roboscopes Pier 11

Pier-11

Telescope & Camera

Vixen are an unusual brand and encapsulated the "think different" phrase many years before the west did, they make everything from basic to the sublime & ridicules and always have done. This VSD100 F/3.8 quintuplet astrograph is in the sublime end of things in our opinion, it's superfast and well corrected across ZWO's 35mm Mono sensor

This pier is also fitted with Antilia's latest gen LRGB HOS 3nm imaging filters, so will delivery sharp contrasty images with small stars.

Pier-11 is a very fast F/3.8 when used with a CMOS sensor, the longest exposure needed for this pier is 300 seconds

Recommended Sub Lengths

Filter	Bright	Dim
Lum	10-60s	60-180s
GB	30-60s	600-180s
Narrowband	60-120s	120-180s

Calibration Files

10, 20, 30, 60, 90, 120, 180, 240, 300s Darks
Bias
Flat Frames

If you choose more individual sub lengths eg 550s, then darks are not included in the price and are taken for you on an individual basis. Please add darks to your imaging run in checkout.

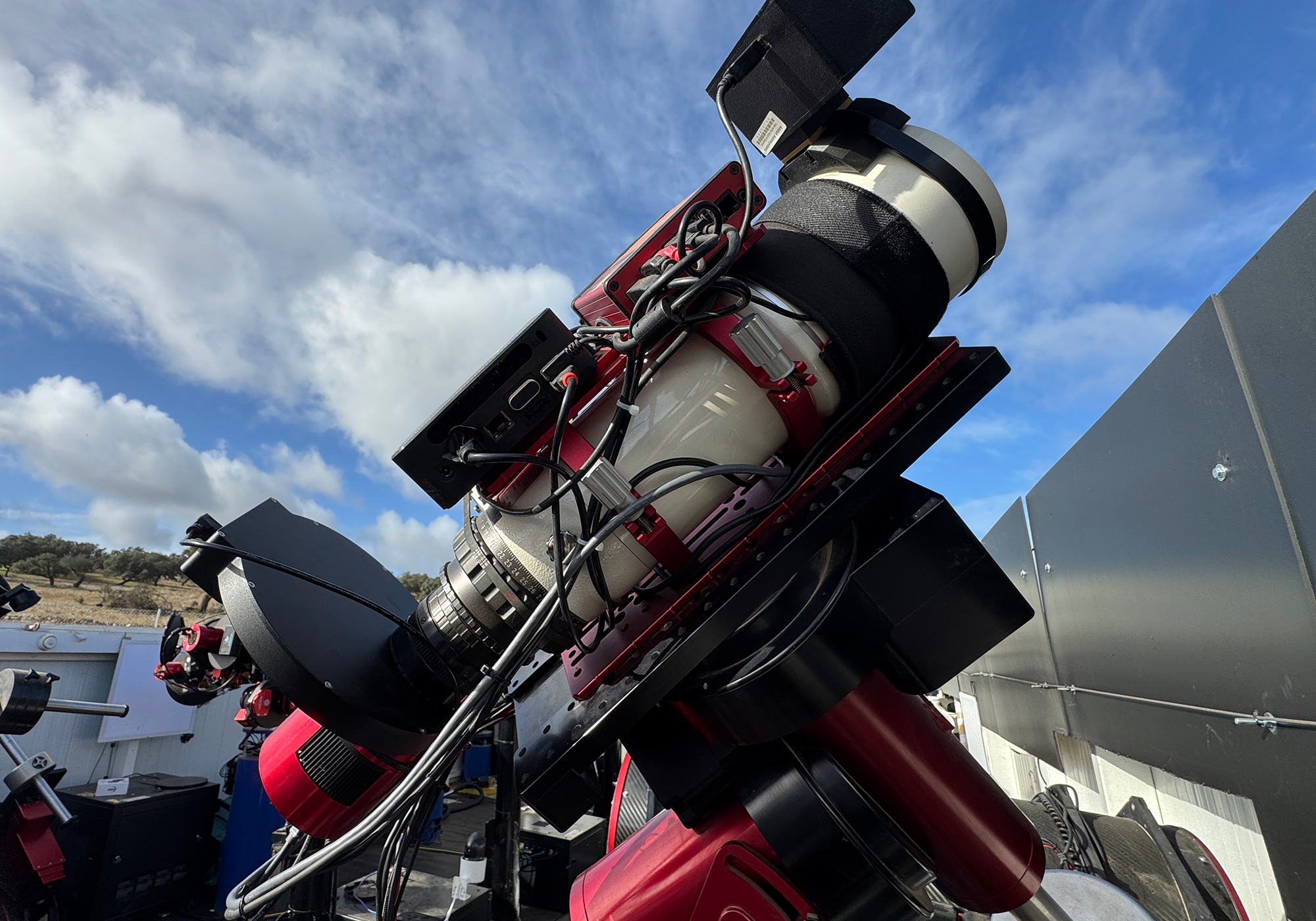

Latest Image Inside The Observatory

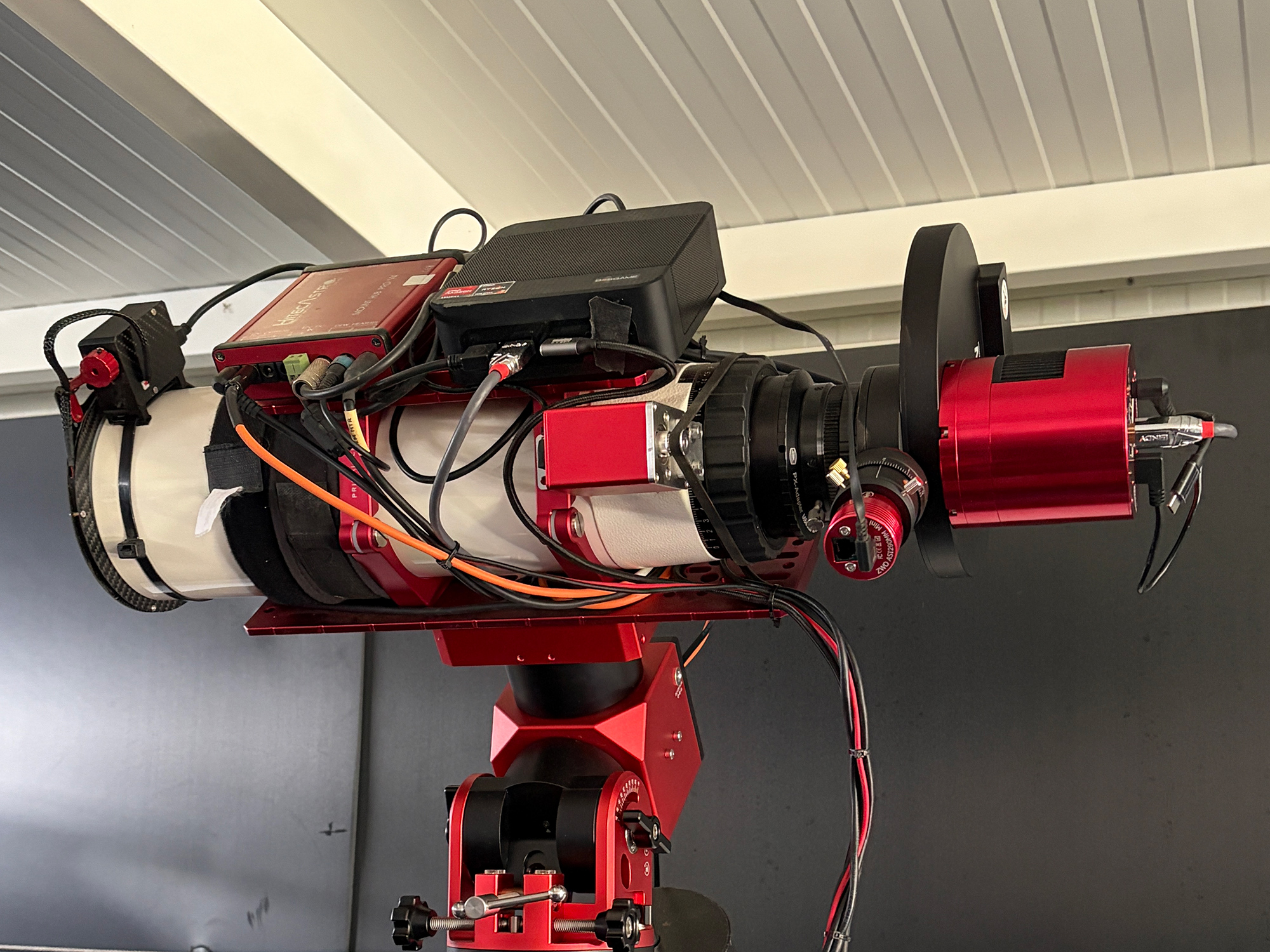

Pier Equipment & Specifications

Telescope	Vixen VSD100 F/3.8
Mount	Paramount MX
Camera	ZWO 6200 CMOS Mono 35mm Camera
Filter Wheel	ZWO 7 Position
Filters	Antilia LRGBHOS 3nm
Guider	n/a
Focuser	ZWO EAF
Power & Dew Control	Mount Hub pro V4
